脚模仪
发布时间：2025.03.13
型号
Infoot 3D Scanner IFU-S-01
仪器介绍

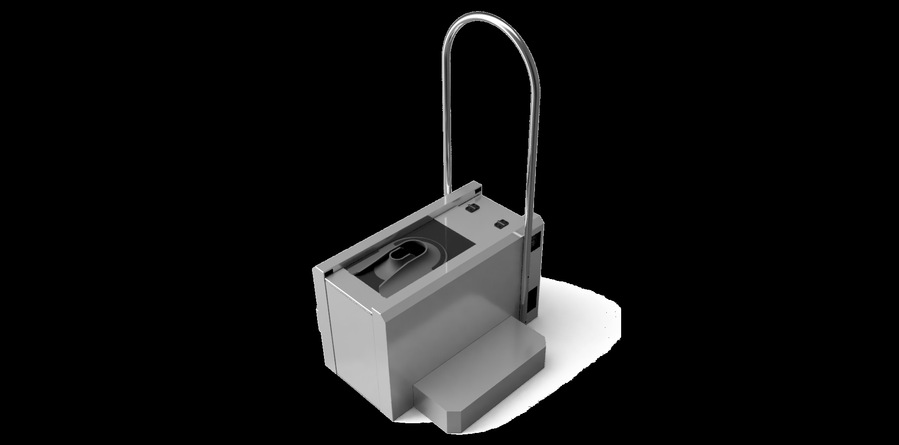

INFOOT is a non-contact 3D foot scanner.
The fundamental functionality is to obtain human-foot shape and its anatomical measurements.
Scanning and building database are conducted on the PC by using companying software.
Also, by using one of the optional software LastMeasure, shoe lasts can be scanned as well.
The scanner deploys red lasers and CCD cameras which captures the lasers.
The scanning time is approximately 10 seconds depending upon how the size of scanning objects.

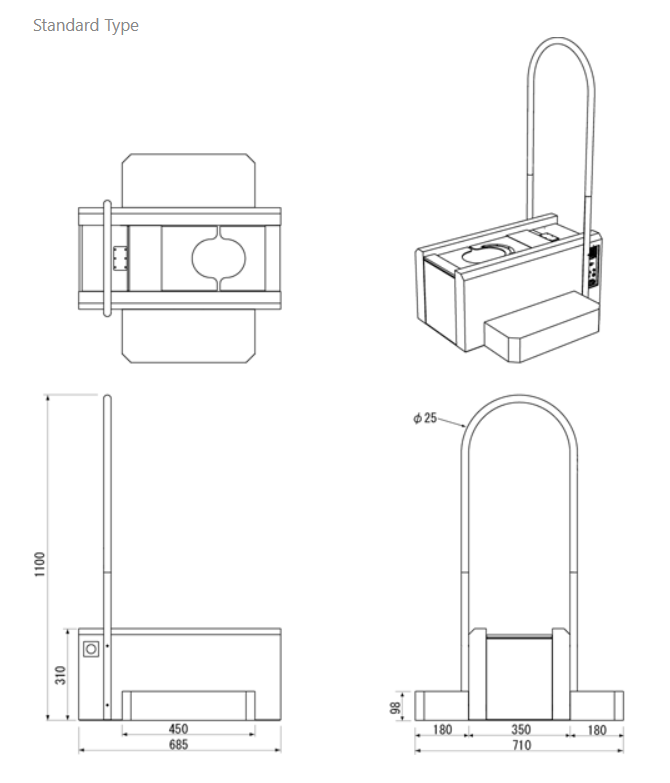

There are two types of INFOOT, namely Standard Type and High Type. The height of objects Standard Type and High Type can capture are 150mm(roughly above the ancle) and 250mm(roughly lower part of a leg), respectively.
数据说明
The shape data is saved as the proprietary, 3D point-clouds binary data file format, however, by using one of the optional software File Converter, it can be exported into CSV, DXF, STL etc. which can be used in most of the CAD software.
By using landamerk stickers, INFOOT can recognize anatomical landamerks of feet.
Based on the anatomical landmarks, measurements such as foot length, foot circumference and foot width are obtained.
These measurements can be stored in the database.
For further information about measurements, please refer to Details of Measurements.
更多信息
文件转换器地址：http://www.iwl.jp/en/content/last_measure.html
测量详细信息地址：http://www.iwl.jp/en/content/mark_dimension.html
相关文件下载
| 文件名称 | 下载入口 |
|---|---|
| 使用说明 | infoot.docx |
| 相关软件 | - |
| 借用申请 | 借用申请 |
